CE Certified Excavator Long Reach Boom Arm up to 34m

Detalles del producto

Lugar de origen: Guangdong, China

Nombre de la marca: Haide

Número de modelo: PC200/PC210/PC240/PC300/PC350/PC360/PC400/PC450/PC600/PC650/PC800

Condiciones de pago y envío

Cantidad de orden mínima: 1

Obtenga el mejor precio
Contacta ahora
Especificaciones
Resaltar:

CE certified excavator long reach boom

,

excavator long arm up to 34m

,

long reach excavator boom with warranty

Duración máxima:
34m
Tonelaje aplicable:
10ton a 350ton
Acabado superficial:
Pulido con chorro de arena y pintado
Opciones de material:
Q345b, Q690D, Weldox
Longitud total:
13000 mm a 24000 mm
Peso:
3000 kg a 7000 kg
Profundidad máxima del empuje:
9000 mm a 18000 mm
Max Extensivescope:
12500 mm a 23600 mm
Altura máxima de excavación:
11300 mm a 17300 mm
Altura de plegado:
2900 mm a 3400 mm
Volumen del cubo:
0.3m3 a 0.6m3
Tonaje de las excavadoras:
12ton a 45ton
Accesorio incluido:
cubo, enlace, cilindro de cubo, tubería de aceite/manguera, sistema de lubricación
Plazo de obtención de la producción:
15 días para 1 set, 20 días para 3 sets
Capacidad de contenedores:
3 conjuntos completos
Duración máxima:
34m
Tonelaje aplicable:
10ton a 350ton
Acabado superficial:
Pulido con chorro de arena y pintado
Opciones de material:
Q345b, Q690D, Weldox
Longitud total:
13000 mm a 24000 mm
Peso:
3000 kg a 7000 kg
Profundidad máxima del empuje:
9000 mm a 18000 mm
Max Extensivescope:
12500 mm a 23600 mm
Altura máxima de excavación:
11300 mm a 17300 mm
Altura de plegado:
2900 mm a 3400 mm
Volumen del cubo:
0.3m3 a 0.6m3
Tonaje de las excavadoras:
12ton a 45ton
Accesorio incluido:
cubo, enlace, cilindro de cubo, tubería de aceite/manguera, sistema de lubricación
Plazo de obtención de la producción:
15 días para 1 set, 20 días para 3 sets
Capacidad de contenedores:
3 conjuntos completos
Descripción

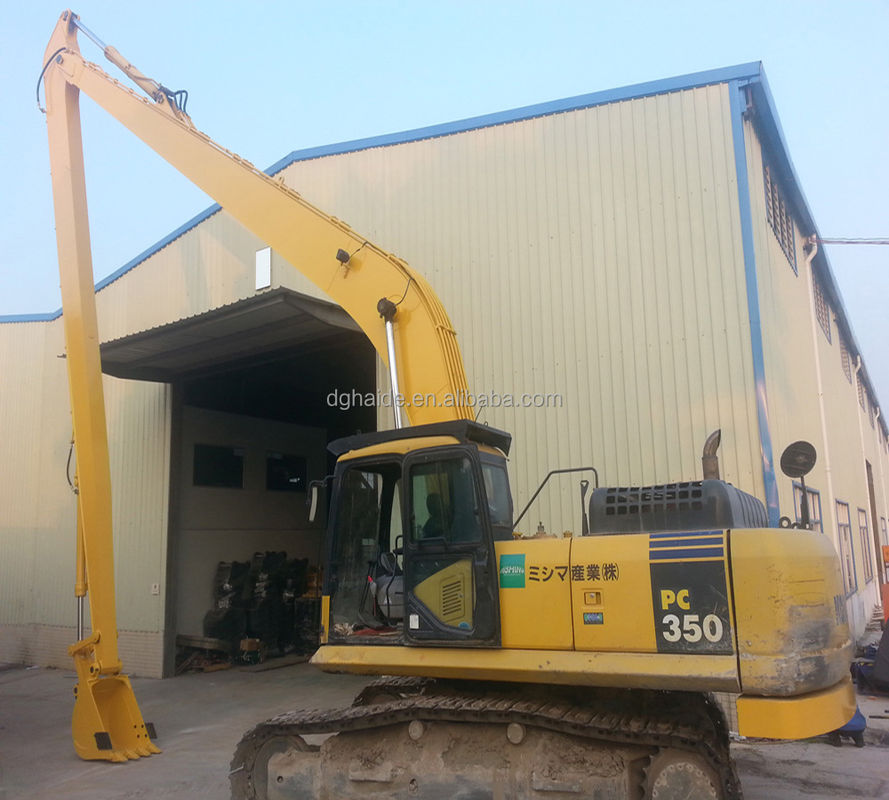

CE Certified Excavator Long Reach Boom Arm up to 34m
CE-approved PC Long Reach Boom and Arm
Product Specifications
Attribute Value
Purpose Long reach application for excavator
Excavator model Any make and model of excavator
Colour Optional
Certificate CE and ISO certificate
Accessory included bucket, linkage, bucket cylinder, oil pipe/hose, lubricating system
Maximum length 34m
Surface finish Sand-blasted and painted
Applicable excavator tonnage From 10ton to 350ton
OEM service Available
Warranty 6 months
Product Features
  • Compatible with all makes and models of excavators
  • Standard supply includes: bucket, linkage, bucket cylinder, 4 oil pipes/hoses, 6 pins, and lubricating system
  • Multiple material options available (Q345B, Q690D, Weldox) to suit specific applications
  • Large boom can be split into two sections for container transport
  • All steel plate edges are tapered by bevelling machine before welding for enhanced strength
  • One year warranty included
  • Reinforced construction available for heavy-duty applications like mining operations
  • Compliant with Europe Machinery Directive 2006/42/EC Article 12 with CE certification
  • Additional pipeline can be installed for extra attachments (breaker, hammer, quick coupler, etc.)
  • Established references in Australia, Europe, India, Bangladesh, Canada, South-east Asia, and South America
Certification & Documentation
  • CE and ISO certificates provided
  • Detailed product brochure available in PDF format
Packaging & Shipping
  • Initial protective film wrapping with steel wire securing inside containers
  • Three complete sets can be loaded per container using racks for upper sets
  • Production lead time: 15 days for 1 set, 20 days for 3 sets
Standard Models
Model LDB120 LDB200 LDB220 LDB300 LDB350 LDB400 LDB450
Total length(mm) 13000 15380 15380 18000 20000 22000 24000
Weight(kg) 3000 4000 4200 5200 6000 6500 7000
Max dig depth(mm) 9000 11340 11370 13000 15000 16500 18000
Max extensiveScope (mm) 12500 15100 15100 17600 19600 21600 23600
Max dig height(mm) 11300 12510 12610 13720 14920 16100 17300
Folding height(mm) 2900 2980 3040 3210 3210 3400 3400
Bucket volume(m3) 0.3 0.4 0.4 0.4 0.5 0.6 0.6
Excavator Tonnage(ton) 12 20 22 30 35 40 45
CE Certified Excavator Long Reach Boom Arm up to 34m 0 CE Certified Excavator Long Reach Boom Arm up to 34m 1 CE Certified Excavator Long Reach Boom Arm up to 34m 2 CE Certified Excavator Long Reach Boom Arm up to 34m 3
